Description

European glass door patch fittings come with all the hardware to complete a free-swinging door with fixed transom and two sidelites, (except glass and additional supports for the fixed transom and sidelites). Pivot setback is 2-9/16″ (65 mm). Floor closer with tapered spindle (ordered separately) may be used with this Kit.

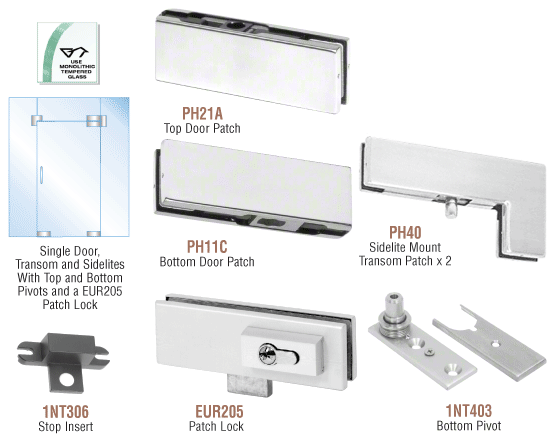

Kit Contains:

• 1 – Kit Lock
• 1 – Sidelite Mount Transom Patch
• 1 – Top Door Patch
• 1 – Bottom Door Patch
• 1 – Stop Insert
• 1 – Bottom Pivot
• Gaskets for 3/8″ or 1/2″ (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)
